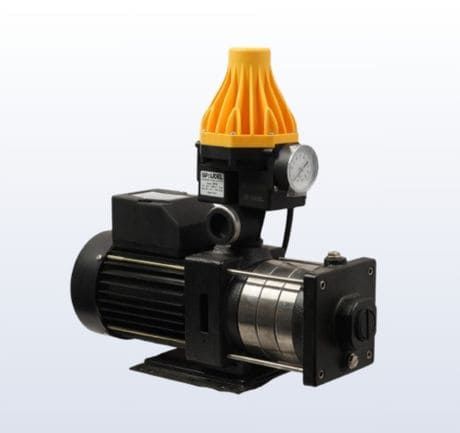

Single Pump with Pressure Controller

Material Of Construction
  • Impeller/Diffuser: SS304/Noryl
  • Pump & Motor Shaft: SS410
  • Seal: Carbon Ceramic
  • Motor Body: Aluminum Extruded
  • Winding Wire: EC Grade Copper
  • Rotor: Aluminum Die Cast
  • Bearings: SKF
Technical Data
  • Hp Range
    • Single Phase: 0.5 - 2 Hp
    • Three Phase: 0.5 - 2 Hp
  • Operating Head: 28 - 134 Meters
  • Discharge Range: 0 - 68 LPM (0 - 4 m 3/Hr)
  • Maximum Temperature: 60° C
  • Operating Voltage Range
    • Single Phase: 180 - 240 V
    • Three Phase: 380 - 420 V

APPLICATIONS

  • Pressure Boosting in Homes
  • Salons
  • Shops
  • Bungalows
